    Articulator · Direct fit

    DACOS Omni for SAM

    ZeroDrift™ Transfer System for SAM articulators. Direct magnetic mounting: the pin returns to zero, remount after remount. Choose your kit height, or browse SAM spare parts below.

    See the recommended kit

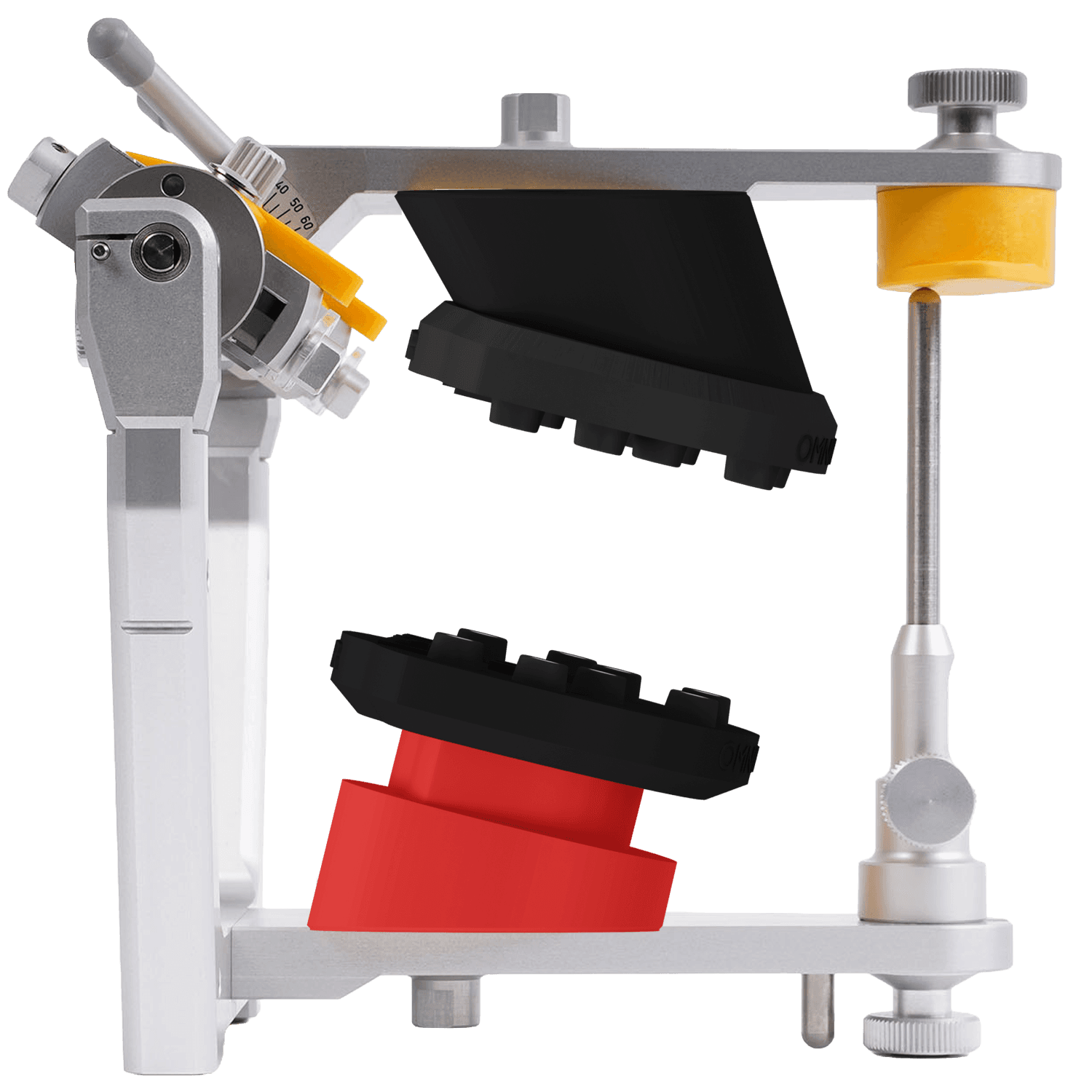

    DACOS Omni plates mounted on a SAM articulator

    How DACOS Omni fits your SAM

    Models covered
    SAM 3, SAM 2, SAM 2P, SAM 2PX, SAM SE, and SAM NEO
    Fit
    Direct fitDirect fit: the upper plate of the DACOS Omni SAM carries the SAM split cast interface and mounts on the articulator directly. After the one-time installation, no plaster for the models.
    Installation
    Before installing, remove the original bolt of the SAM articulator: the kit ships its own. Then run the TrueZero™ calibration once on that articulator: the pin returns to zero.

    Recommended kit

    Pick the height for your cases: Light for no implants or implants on one arch, Ultra for implants on both arches, Duo for both heights in one box.

    Full kit details

    DACOS Omni SAM

    Choose your height

    Both heights on the bench: Light for daily work, Ultra for implant cases. USD 27.20 less than two single kits.

    One height is enough? Light or Ultra alone costs USD 372.80 less.

    Price: USD 772.80

    Prices shown without VAT. Prices in USD. Taxes and duties are shown at checkout.

    Dispatched from Italy within 2 business days

    • Secure checkoutShop PayApple PayGoogle PayVisaMastercardMaestroPayPal
    • Invoice with every order

    What’s inside the DACOS Omni SAM

    Duration 1:14

    Installation, step by step

    How it goes on

    Once per articulator, with the calibrator you print. Then the plates stay on and every model mounts by magnets, with no plaster for the models. Print the two halves of the TrueZero™ calibrator on your own printer, with the same resin, settings and post-curing as your models. The fitting test before it picks the offset.

    Good to know. Before installing, remove the original bolt of the SAM articulator: the kit ships its own.

    1. Gloved hand holding the SAM upper member with the DACOS Omni UPPER Direct plate mounted on it

      Upper plate mounted

      Mount the UPPER Direct plate with its dedicated SAM interface. Before calibrating, set the incisal pin at zero and lock it.

    2. SAM upper member upside down with the UPPER plate, the joined calibrator and the LOWER plate seated on top

      Calibrator and lower plate

      With the upper assembly upside down, seat the complete calibrator and the LOWER plate. The two calibrator halves must be fully joined; the red counterpart stays mounted on the lower member, outside this shot.

    3. Plaster spread with a spatula into the cavity on the back of the LOWER plate, above the calibrator

      Plaster in the cavity

      Spread the plaster into the cavity on the back of the LOWER plate, keeping its rims and couplings clean. The amount shown is for illustration only.

    4. SAM articulator closed upside down, the red lower counterpart above the plates and the calibrator, the incisal pin at zero

      Close upside down

      Close the articulator upside down with the lower counterpart still mounted. Keep the calibrator steady and the incisal pin at zero until the material has fully set.

    5. SAM articulator seen from the side with the DACOS Omni upper and lower plates installed and the calibrator removed

      Installation complete

      Once the material has fully set, open the articulator and take out the calibrator. The plates stay installed; the material sits in the lower assembly.

    What labs say

    • In the spotlight

      Ricky Huang

      Prosthodontics Resident at Harvard School of Dental Medicine

      United States

      Brilliant design with strong customization (nine site options for different cases) and the mounting calibration, which should improve accuracy!

    • Gaetano Jauregui

      Functional Art Studio

      United States

      I love this system!! It has impressed me with its usefulness and predictability in digital workflows.

    • Simone Fedi

      Dental technician

      Italy

      I've finally found a simple, effective system for printing models through the Model Creator module in Exocad, with a beautiful and extremely precise design. The models are lightweight and reduce resin consumption. They don't have bulky or outdated bases, and I don't have to change anything in my workflow — I can keep printing horizontally, with the added flexibility of managing the model base and the digital analogs. Fully approved!

      Full arch models on black DACOS Omni Ultra plates in the articulator
      Case photo shared by Simone Fedi
    • Andrea Pugno

      Dental technician · Pugnolab

      Italy

      In our CAD workflow, design is only half the job. We were looking for a system that would let us take a real step up in the manual verification of our projects, especially for tasks requiring a highly dynamic approach, such as checking a 3D-printed bite splint. With the new Dacos Omni, we found exactly what we needed. Thank you, Antonello

      Printed splint on a red DACOS Omni plate
      Case photo shared by Andrea Pugno
    • Alfredo Salvi

      Full Master Pro Instructor, Blender for Dental

      Tenerife, Spain

      I had the chance to try this system and I have to say it is truly excellent: Antonello has bridged the gap between analog and digital with great precision. It has become a routine in our laboratory, and the results have been remarkable. Heartfelt thanks.

      Printed arch on DACOS Omni plates in a carbon articulator
      Case photo shared by Alfredo Salvi
    • Nicola Palladino

      Certified exocad Instructor

      Italy

      Those who know me know I've always been a bit skeptical about systems for repositioning 3D-printed models in an articulator. But Antonello designed this one differently, and it solves two key problems. The first is articulator calibration: thanks to the Gemini Calibrator, DACOS eliminates the level discrepancies caused by uncalibrated articulators. The second is the problem of having 3D-printing pins under the model: DACOS moves the anchoring level to a zone that doesn't interfere with the result or with seating the model on the articulator. It's one of the few systems on the market I really like.

    Read all reviews

    Questions about SAM

    Which SAM articulators does the kit fit?

    Every SAM articulator; the SAM 3, the SAM 2 and its current versions SAM 2P and SAM 2PX, the SAM SE and the SAM NEO are confirmed.

    Do I change anything on the articulator?

    Yes, one part: before the installation you remove the original bolt of the SAM, because the kit ships its own.

    Light, Ultra or Duo?

    Light for cases with no implants or implants on one arch, Ultra for implants on both arches. Duo puts both heights in one box.

    Second articulator in the lab?

    DACOS Omni Flex bonds once to any articulator and runs the same ZeroDrift™ protocol at a lower price. Running more than one articulator? Add a second kit, or cover the extra one with Flex.

    See Flex for any articulator

    SAM spare parts

    For replacements and a second height. The kit above is the place to start.
